Product Details:
Payment & Shipping Terms:
|
| Application: | Electronic | Width: | Customized |
|---|---|---|---|
| Material: | Red Copper | Grade: | Pure Copper, C1100 |
| Cu (Min): | 99.99% | Alloy Or Not: | Non-alloy |

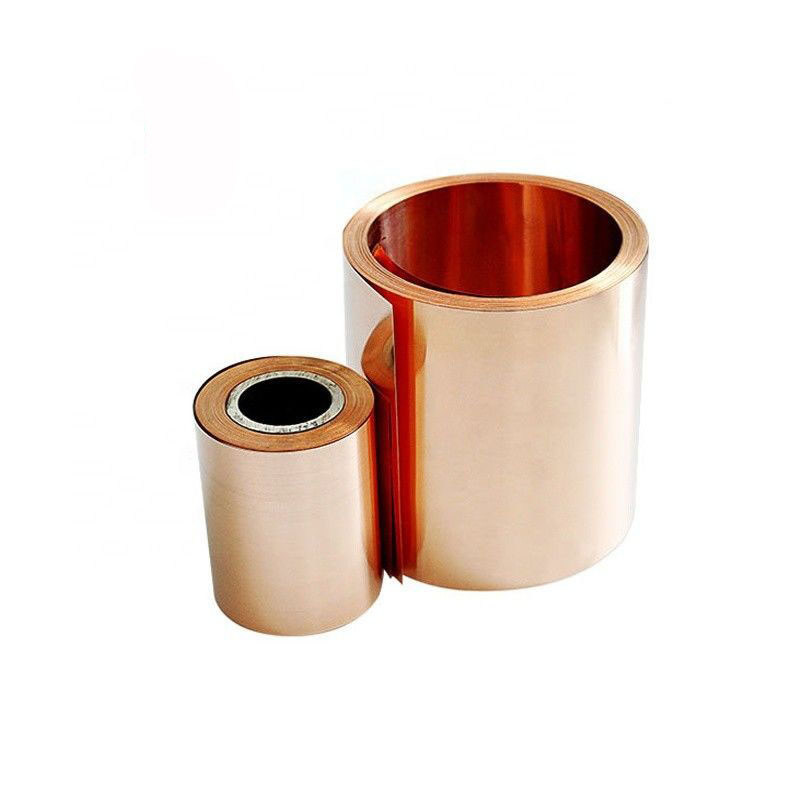

| Product Name: | Customized Rolled Copper Foil For Lithium Battery With Factory Price | Shape: | Strip Coil Roll |
| Hardness: | 1/2H, H | Color: | Red |
| Standard: | JIS ASTM DIN EN ISO | Certificate: | ROHS |
| Length: | Customized | Side Camber: | ≤2mm/m |
| Edge Burr: | ≤0.02mm | ||
| High Light: | 99.99% Lithium Ion Battery Copper Foil,0.05mm Lithium Ion Battery Copper Foil,1.0mm Lithium Ion Battery Copper Foil |
||
| Product Name | Customized Rolled copper foil for lithium battery with factory price |
| Standard | ASTM,ROSH,AISI,DIN,EN,GB,JIS |
| Length | Customized |
| Thickness | 0.05-over1.0mm |
| Width | Customized |
| Surface | 2B,BA,NO.3,NO.4,HL,NO.1,Mirror |
| Material |
C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,C10930,C11000,C11300, C11400,C11500,C11600,C12000,C12200,C12300,C12500,C14200,C14420,C14500,C14510,C14520, C14530,C17200,C19200 etc. |
| Hardness | 1/4H,1/2H,3/4H,H,O |
|
GB |
DIN |
EN |
ISO |
UNS |
JIS |
||
|
TU2 |
OF-Cu |
2.0040 |
Cu-OFE |
CW009A |
Cu-OF |
||
|
- |
SE-Cu |
2.0070 |
Cu-HCP |
CW021A |
- |
C10100 |
C1011 |
|
- |
SE-Cu |
2.0070 |
Cu-PHC |
CW020A |
- |
C10300 |
- |
|
T2 |
E-Cu58 |
2.0065 |
Cu-ETP |
CW004A |
Cu-ETP |
C10300 |
- |
|
TP2 |
SF-Cu |
2.0090 |
Cu-DHP |
CW024A |
Cu-DHP |
C11000 |
C1100 |
|
- |
SF-Cu |
2.0090 |
Cu-DHP |
CW024A |
Cu-DHP |
C12200 |
C1220 |
|
- |
SF-Cu |
2.0090 |
Cu-DHP |
CW024A |
Cu-DLP |
C12200 |
C1220 |
|
TP1 |
SW-Cu |
2.0076 |
Cu-DLP |
CW023A |
Cu-DLP |
C12200 |
C1220 |
|
H96 |
CuZn5 |
2.0220 |
CuZn5 |
CE500L |
CuZn5 |
C12000 |
C1201 |
| GB | Composition(%) | |||
| Cu | P | O | Other | |
| TU1 | 99.97 | 0.002 | less than 0.002 | balance |
| TU2 | 99.95 | 0.002 | less than 0.003 | balance |
| T2 | 99.9 | - | - | balance |
| TP1 | 99.9 | 0.004-0.012 | - | balance |
| TP2 | 99.9 | 0.015-0.040 | - | balance |
| C10200 | 99.95 | 0.001-0.005 | - | balance |
| C11000 | 99.9 | - | - | balance |
| C12000 | 99.9 | 0.004-0.012 | - | balance |
| C12200 | 99.9 | 0.015-0.040 | - | balance |
| Grade(China) | Grade(Japan) | Temper | External diameter(mm) | Tensile strength(Mpa) | Elongation(%) | |
| δ10 | δ5 | |||||
| More than | ||||||
| T2/T3/TP1/TP2 |
C11000/C1201 C1220 |
Y | more than 100 | 315 | - | - |
| more than 100-360 | 295 | - | - | |||
| Y2 | less than 100 | 235-345 | - | - | ||
| M | 3-360 | 205 | 35 | 40 | ||
Our Serves
1. Abundant raw materials inventory for Fast Delivery time.
2. Low MOQ for all specifications.
3. Customize in various specifications( different surface/size/thick).
4. Specially strong in customize thin materials(0.01MIM-10MM).
5. Factory founded in 2003,already with 15 Years experience.
6. ISO 9001& ISO 14001.
7. Multi Certificates for all Markets: SGS,ROHS,REACH.
