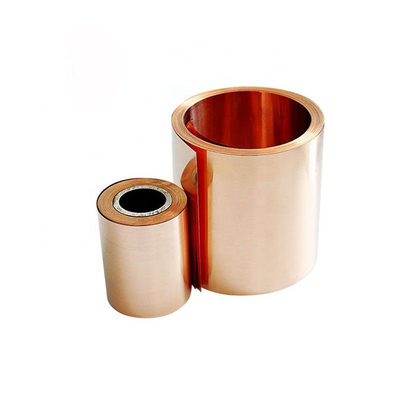

99.99% Lithium Ion Battery Copper Foil

Place of Origin:China
Brand Name:OEM
Certification:ISO / SGS / RoHS
Minimum Order Quantity:50kg
Price:Negotiable
Payment Terms:L/C, T/T
Supply Ability:550T Per Month
Product Details
Highlight:

99.99% Lithium Ion Battery Copper Foil

,

0.05mm Lithium Ion Battery Copper Foil

,

1.0mm Lithium Ion Battery Copper Foil
Application: Electronic
Width: Customized
Material: Red Copper
Grade: Pure Copper, C1100
Cu (Min): 99.99%
Alloy Or Not: Non-alloy
Product Name: Customized Rolled Copper Foil For Lithium Battery With Factory Price
Shape: Strip Coil Roll
Hardness: 1/2H, H
Color: Red
Standard: JIS ASTM DIN EN ISO
Certificate: ROHS
Length: Customized
Side Camber: ≤2mm/m
Edge Burr: ≤0.02mm
Product Description
99.99% Lithium Ion Battery Copper Foil




Product Description



Product Name  Customized  Rolled copper foil for lithium battery with factory price
Standard  ASTM,ROSH,AISI,DIN,EN,GB,JIS
Length  Customized
Thickness  0.05-over1.0mm
Width  Customized
Surface  2B,BA,NO.3,NO.4,HL,NO.1,Mirror
Material

 C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,C10930,C11000,C11300,

 C11400,C11500,C11600,C12000,C12200,C12300,C12500,C14200,C14420,C14500,C14510,C14520,

 C14530,C17200,C19200 etc.
Hardness  1/4H,1/2H,3/4H,H,O

Copper Composition


GB

DIN

EN

ISO

UNS

JIS

TU2

OF-Cu

2.0040

Cu-OFE

CW009A

Cu-OF

-

SE-Cu

2.0070

Cu-HCP

CW021A

-

C10100

C1011

-

SE-Cu

2.0070

Cu-PHC

CW020A

-

C10300

-

T2

E-Cu58

2.0065

Cu-ETP

CW004A

Cu-ETP

C10300

-

TP2

SF-Cu

2.0090

Cu-DHP

CW024A

Cu-DHP

C11000

C1100

-

SF-Cu

2.0090

Cu-DHP

CW024A

Cu-DHP

C12200

C1220

-

SF-Cu

2.0090

Cu-DHP

CW024A

Cu-DLP

C12200

C1220

TP1

SW-Cu

2.0076

Cu-DLP

CW023A

Cu-DLP

C12200

C1220

H96

CuZn5

2.0220

CuZn5

CE500L

CuZn5

C12000

C1201





GB                                                            Composition(%)
Cu P O Other
TU1 99.97 0.002 less than 0.002 balance
TU2 99.95 0.002 less than 0.003 balance
T2 99.9 - - balance
TP1 99.9 0.004-0.012 - balance
TP2 99.9 0.015-0.040 - balance
C10200 99.95 0.001-0.005 - balance
C11000 99.9 - - balance
C12000 99.9 0.004-0.012 - balance
C12200 99.9 0.015-0.040 - balance
Mechanical Propertie
Grade(China) Grade(Japan) Temper External diameter(mm) Tensile strength(Mpa) Elongation(%)
δ10 δ5
More than
T2/T3/TP1/TP2

C11000/C1201

C1220

 Y more than 100 315 - -
more than 100-360 295 - -
Y2 less than 100 235-345 - -
M 3-360 205 35 40




Our Serves

1. Abundant raw materials inventory for Fast Delivery time.

2. Low MOQ for all specifications.
3. Customize in various specifications( different surface/size/thick).
4. Specially strong in customize thin materials(0.01MIM-10MM).
5. Factory founded in 2003,already with 15 Years experience.
6. ISO 9001& ISO 14001.
7. Multi Certificates for all Markets: SGS,ROHS,REACH.
