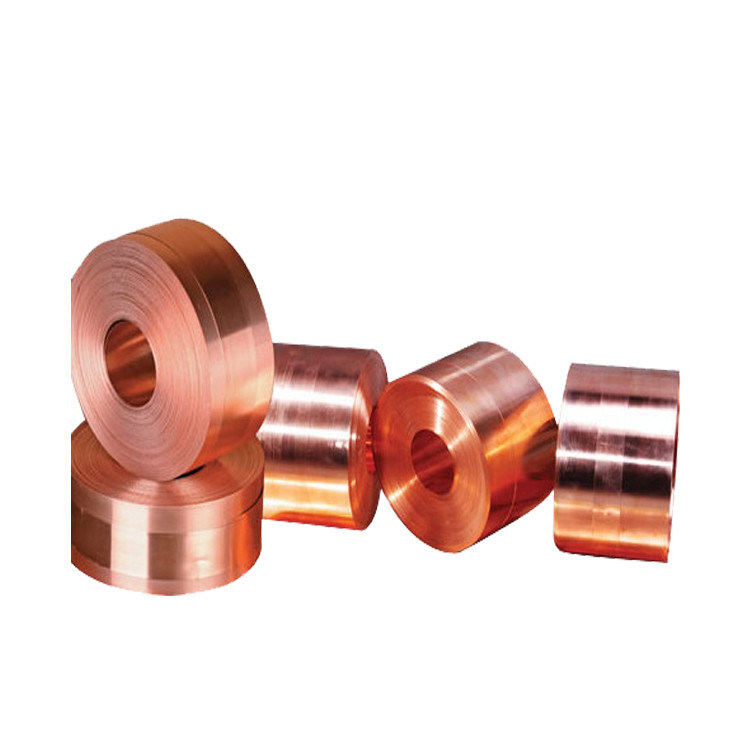

Width 520mm High Purity Red ED Copper Foil
Features:
1. the treated foil in gray or red
2. High profile with properties suitable for FCCL
3. Grain structure of copper foil leads to high flexibility
4. Excellent etching performance
5. low profile enables to make fine circuit pattern
Application:
1. Casting and lamination type FCCL
2. Super fine pattern FPC
3. Chip on flex (COF) for LED
Typical properties of LP-S-B/R ED electrolytic copper foil(for FPC or inner layer of HDI)
|
Classification
|
Unit | Requirement | Test Method | |||||||
| Foil Designation | / | 1 | H | M | 1 | IPC-4562A | ||||
| Nominal thickness | / | 10um | 12um | 1/2 OZ(18um) | 3/4 OZ(25um) | 1 OZ(35um) | IPC-4562A | |||
| Area Weight | g/㎡ | 98±4 | 107±4 | 153±5 | 228±8 | 285±10 |
IPC-TM-650 2.2.12.2 |
|||
| Purity | ％ | ≥99.8 |
IPC-TM-650 2.3.15 |
|||||||
| Foil Profile | Shiny side(Ra) | սm | ≤2.5 | ≤2.5 | ≤2.5 | ≤2.5 | ≤2.5 |
IPC-TM-650 2.3.17 |
||
| Matte side(Rz) | um | ≤4.0 | ≤4.5 | ≤5.5 | ≤6.0 | ≤8.0 | ||||
| Tensile Strength | R.T.(23℃) | Mpa | ≥260 | ≥260 | ≥280 | ≥280 | ≥280 |
IPC-TM-650 2.3.18 |
||
| H.T.(180℃) | Mpa | ≥180 | ≥180 | ≥180 | ≥180 | ≥180 | ||||
| Elongation | R.T.(23℃) | ％ | ≥5 | ≥6 | ≥8 | ≥10 | ≥12 |
IPC-TM-650 2.3.18 |
||
| H.T.(180℃) | ％ | ≥5 | ≥6 | ≥7 | ≥8 | ≥8 | ||||
| Peel Strength(FR-4) | N/mm | 0.7 | 0.8 | 1.0 | 1.1 | 1.2 |
IPC-TM-650 2.4.8 |
|||
| Ibs/in | 4 | 4.6 | 5.7 | 6.3 | 6.9 | |||||
| Pinholes&porosity | Number | No |
IPC-TM-650 2.1.2 |
|||||||
| Anti-oxidization | R.T.(23℃) | 180days | / | |||||||
| H.T.(200℃) | 60 Minutes | / | ||||||||
1. Standard Width 520mm,max width 1295(±1)mm,May according to the customer request tailor.
We test the peel strength with PI ,please reconfirm with your pp.
Photos share
High Purity Soft 10um Conductive Copper Foil Rolls
10 Micron Pure Electrolytic Thin Copper Foil
C11000 Insulation Transformer PCB Copper Foil
