FCCL ED Copper Foil
Quickly details
Thickness: 0.012-0.070 mm
Width: 5-520 mm
Length: 500-5000 M
ID: 76 mm,152 mm
Alloy: T2,C11000,C1100,C101,E-Cu58
Temperature: High
Features:
1. the treated foil in gray or red
2. High profile with properties of LP-S-B/R suitable for FCCL
3. Grain structure of copper foil leads to high flexibility
4. Excellent etching performance
5. low profile enables to make fine circuit pattern
Application:
1. Casting and lamination type FCCL
2. Super fine pattern FPC
3. Chip on flex (COF) for LED
Compare between CA copper foil and ED copper foil
1. Process: rolled copper foil (Rolling process),ED copper foil (Electrodeposition process)
2. Strength toughness: rolled copper foil is a flaky crystalline structure, so the strength and toughness is better than electrolytic copper foil, so most of the rolling copper foil used in flexible printed circuit boards.
3. Width: rolling copper foil width ≤ 620mm, electrolytic copper foil width ≤ 1380mm
4. Density: rolled copper foil higher density, the surface is relatively smooth, conducive to the production of printed circuit board after the rapid transmission of the signal, so high-frequency high-speed transmission, fine lines printed circuit board also used some calendering copper Foil.
5. Surface treatment width:rolled copper foil be limited by Surface treatment widest effective width of 520mm.
Typical properties of electrolytic copper foil(for FPC or inner layer of HDI)
|
Classification
|
Unit | Requirement | Test Method | |||||||
| Foil Designation | / | 1 | H | M | 1 | IPC-4562A | ||||
| Nominal thickness | / | 10um | 12um | 1/2 OZ(18um) | 3/4 OZ(25um) | 1 OZ(35um) | IPC-4562A | |||
| Area Weight | g/㎡ | 98±4 | 107±4 | 153±5 | 228±8 | 285±10 |
IPC-TM-650 2.2.12.2 |
|||
| Purity | ％ | ≥99.8 |
IPC-TM-650 2.3.15 |
|||||||
| Foil Profile | Shiny side(Ra) | սm | ≤2.5 | ≤2.5 | ≤2.5 | ≤2.5 | ≤2.5 |
IPC-TM-650 2.3.17 |
||
| Matte side(Rz) | um | ≤4.0 | ≤4.5 | ≤5.5 | ≤6.0 | ≤8.0 | ||||
| Tensile Strength | R.T.(23℃) | Mpa | ≥260 | ≥260 | ≥280 | ≥280 | ≥280 |
IPC-TM-650 2.3.18 |
||
| H.T.(180℃) | Mpa | ≥180 | ≥180 | ≥180 | ≥180 | ≥180 | ||||
| Elongation | R.T.(23℃) | ％ | ≥5 | ≥6 | ≥8 | ≥10 | ≥12 |
IPC-TM-650 2.3.18 |
||
| H.T.(180℃) | ％ | ≥5 | ≥6 | ≥7 | ≥8 | ≥8 | ||||
| Peel Strength(FR-4) | N/mm | 0.7 | 0.8 | 1.0 | 1.1 | 1.2 |
IPC-TM-650 2.4.8 |
|||
| Ibs/in | 4 | 4.6 | 5.7 | 6.3 | 6.9 | |||||
| Pinholes&porosity | Number | No |
IPC-TM-650 2.1.2 |
|||||||
| Anti-oxidization | R.T.(23℃) | 180days | / | |||||||
| H.T.(200℃) | 60 Minutes | / | ||||||||
1. Standard Width 520mm,max width 1295(±1)mm,May according to the customer request tailor.
We test the peel strength with PI ,please reconfirm with your pp.

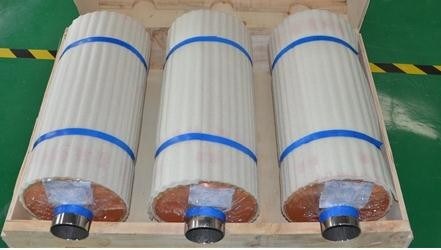

ED Copper Foil Pakcage Photos :
FAQ:
Q1: What's your guarantee?
A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The common delivery time is 5-35 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: The MOQ is 150 kg.
Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6. what is your standard width?
A: 520mm and 620mm,we accept customization for the width. we can cut it into any size that you demand after pass discussing.
