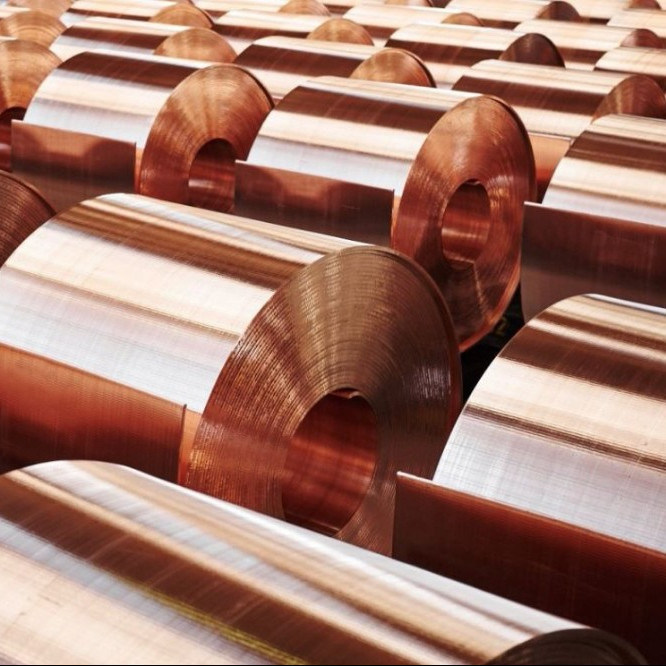

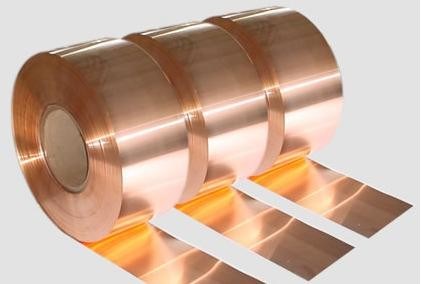

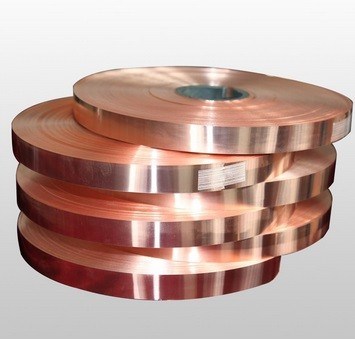

0.5mm Electrolytic Copper Foil
0.5mm Electrolytic Copper Foil
Product Specification
Place of Origin:
China
Brand Name:
OEM
Certification:
ISO / SGS / RoHS
Minimum Order Quantity:
50kg
Price:
Negotiable
Packaging Details:
Exporting Wooden Case
Delivery Time:
10 - 15 Days
Payment Terms:
L/C, T/T
Supply Ability:
550T Per Month
Overview
0.5mm Electrolytic Copper Foil Product Description Chemical Composition (%) Cu 99.9 min O2 0.02-0.0045 Physical Properties Density g/cm3 8.94 Coefficient of thermal expansion 10-6 /℃ 20/℃-100/℃ 17.7 Electrical conductivity IACS%(20℃) 99 Thermal Conductility W/(m*k) 390 Modulus of elasticity (KN/mm2) ...
Product Attributes
Application:
Electronic
Thickness:
0.1mm-0.5mm
Width:
100mm-600mm
Material:
Red Copper
Grade:
Copper
Cu (Min):
99.97%
Alloy Or Not:
Non-alloy
Product Name:
Copper Foil
Shape:
Tape
Color:
Red
Length:
Clients ' Reuqests
Package:
Wood Pallets
Port:
Tianjin Port
Highlight:
0.5mm Electrolytic Copper Foil
,Red Electrolytic Copper Foil
,Cable armoring Electrolytic Copper Foil
Product Description
Table of Contents
0.5mm Electrolytic Copper Foil
Product Description
| Chemical Composition (%) | |||
| Cu | 99.9 min | O2 | 0.02-0.0045 |
| Physical Properties | |||
| Density g/cm3 | 8.94 | Coefficient of thermal expansion 10-6 /℃ 20/℃-100/℃ | 17.7 |
| Electrical conductivity IACS%(20℃) | 99 | Thermal Conductility W/(m*k) | 390 |
| Modulus of elasticity (KN/mm2) | 118 | ||
| Temper | Tensile strength (RM, Mpa) | Yield Strength (Rp0.2 Mpa) | Elongation A50 | Vickers Hardness (HV) |
| 0 | 195 min | - | 35 min | 60 max |
| 1/4 H | 215-255 | - | 25 min | 60-80 |
| 1/2 H | 255-315 | - | 15 min | 80-100 |
| H | 290 min | - | 5 min | 100-130 |
| EH | - | - | - | - |
Application:
1) Electric and electric springs,switches
2) Lead frames
3) Connectors and oscillation reeds
3) PCB field
4) Communication cable
5) Cable armoring
6) Mobile phone main board
7) Ion battery production lamination with PI film
8) PCB collector (electrode backing) materials
