High Purity Soft 10um Conductive Copper Foil Rolls
High Purity Soft 10um Conductive Copper Foil Rolls
Product Specification
Place of Origin:
China
Brand Name:
OEM
Certification:
ISO / SGS / RoHS
Minimum Order Quantity:
50kg
Price:
Negotiable
Packaging Details:
Exporting Wooden Case
Delivery Time:
10 - 15 Days
Payment Terms:
L/C, T/T
Supply Ability:
550T Per Month
Overview
High Purity Soft 10um Conductive Copper Foil Rolls Description Of The Products : Brief Information : Copper Foil is rolled from pure copper ingots, the process including purifying copper ores, make into copper cathodes, ingoting, rolling, annealing, washing, testing, slitting and packing. Our copper ...
Product Attributes
Application:
Lamination , Decoration , Shielding , Conduction
Shape:
In Coil
Thickness:
10 Um
Density:
About 8.93g/cm³
Width:
600mm (23.6'')
Temper:
Soft Annealed
Name:
Copper Foil Rolls
Alloy Or Not:
Non-alloy
Material:
Red Copper
Type:
Flat
Highlight:
0.006mm Copper Foil Rolls
,10um Copper Foil Rolls
,10um Copper Foil Sheet Roll
Product Description
Table of Contents
High Purity Soft 10um Conductive Copper Foil Rolls
Description Of The Products :
- Brief Information :
- Copper Foil is rolled from pure copper ingots, the process including purifying copper ores, make into copper cathodes, ingoting, rolling, annealing, washing, testing, slitting and packing. Our copper ores are imported from South America, which were famous for their copper mining.
- 110-anneal (Electrolytic Tough Pitch or ETP) dead soft. Min 99.96% CU
- This is high quality copper and has a wide range of applications based on conductivity, corrosion resistance, workability, and beauty.
- Advantage :
- Rolled Copper Foil has extraordinary strength, bendability, ductility and lustrous surface, plus its excellent mechanical capacity, makes it irreplaceable as a raw material. Especially when used for transformer, Copper Flexible Connector, CCL, FCCL, PCB, Geothermal Film, Construction, Decoration etc.
- The copper foil can be customized for different temper, which including soft , quarter hard,half hard , hard temper, even special soft and special hard temper.
- Key Features:
- Cuts with scissors or paper cutter .
- Thick enough, so when glued to a backing-board, wood grain does not show through .
- Often used for punching, scrapbooking and other paper crafts.
- Has a wide range of applications based on workabilty and beauty.
- Cuts with household scissors, extremely pliable .
- Excelleent for tooling and will dent easily with a light touch but will not hold its sha[e umder pressure
- Dead soft, very pliable
- Creat designs by emboss drawing . denting , piercing ,rub-transferring , tracing , origami , and hammering (Repousse )
- Has a wide range of applications based on workability and beauty.
- Can be hammered, texturized or punched.
- Used for many outside or inside projects.
- There are many applications based on workability and beauty.
Table 1 : Mechanical Properties
| Temper | JIS Temper | Tensile Strength Rm/N/mm 2 | Elongation A50/% | Hardness HV |
| M | O | 310~410 | ≥ 30 | 40~60 |
| Y2 | 1/2H | 320~450 | ≥ 20 | 55~85 |
| Y | H | 440~480 | - | 80~150 |
| T | EH | 450~540 | - | - |
Table 2 : Alloy Number
| Name | GB | ALLOY NO. | SIZE (mm) | ||||
| (ISO) | (ASMT) | (JIS) | (BIS) | (DIN) | |||
| Copper Foil | T2 | Cu-ETP | C11000 | C1100 | C101 | R-Cu57 | Thickness: 0.006-0.1 /Max Width: 650 |
Table 3 : Size & Tolerance
| Thickness | Thickness Tolerances | Width | Width Tolerances |
| 0.006~0.04 | ± 0.001 | 1.0~650 | ± 0.1 |
| > 0.04~0.10 | ± 0.002 |
Table 4 : Specifications
| Thickness | Width | Temper |
| 0.006~0.04 | 1.0～650 | O,1/2H,H,EH |
| > 0.04~0.10 | 1.0～650 |
O,1/2H,H,EH |

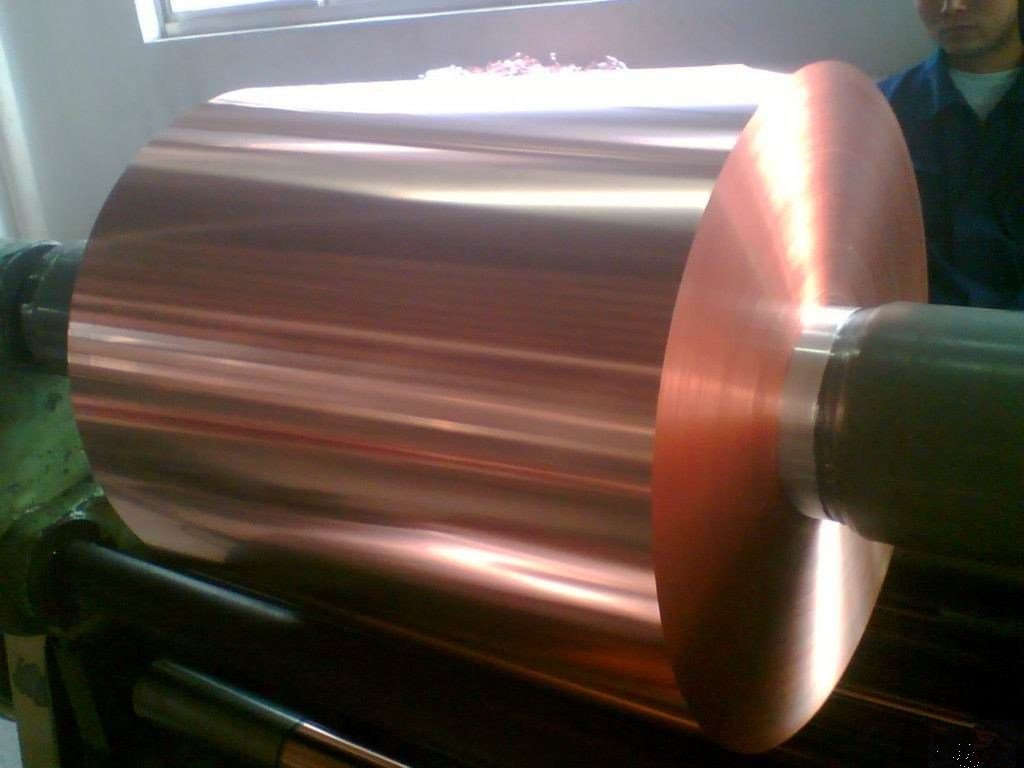

Pictures of Copper Foil
Manufacturing of Copper Foil:
