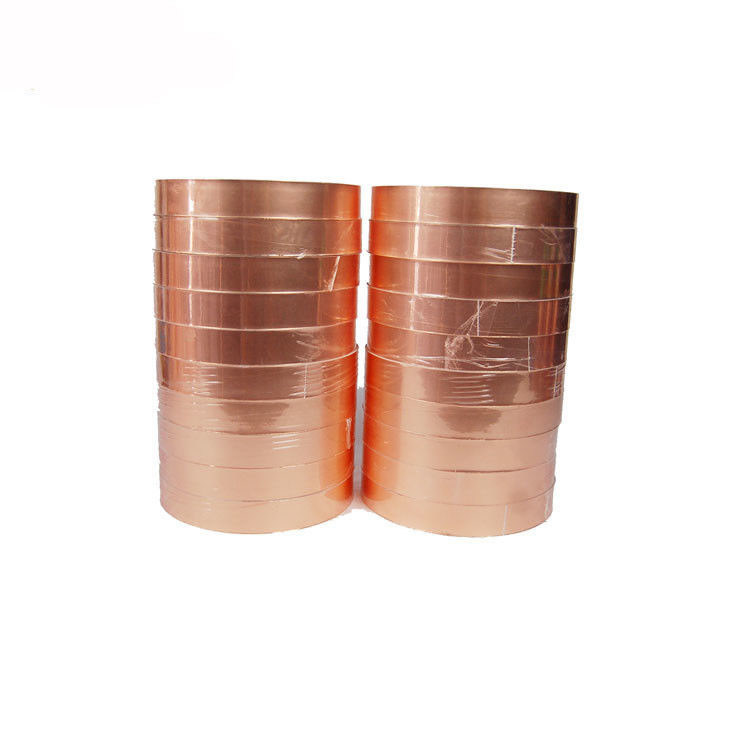

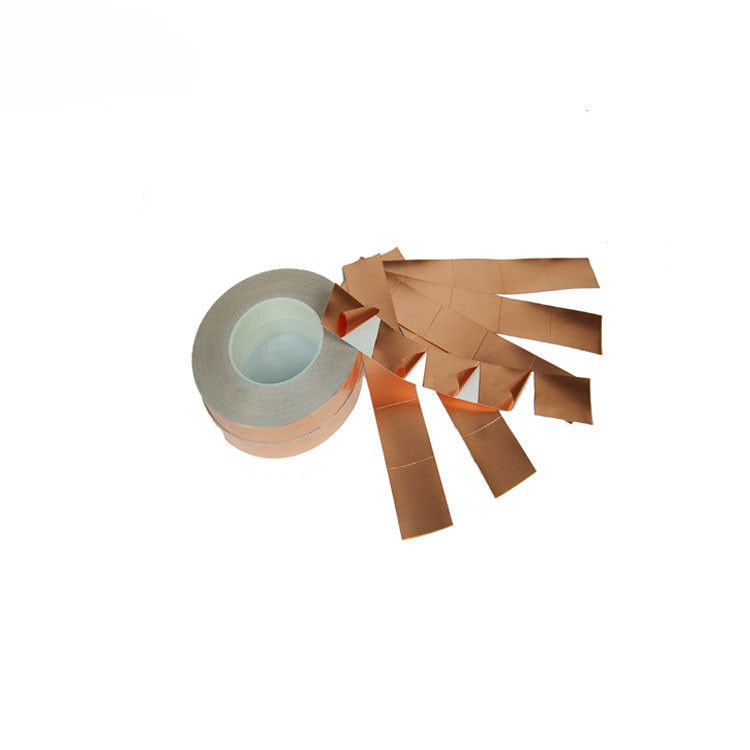

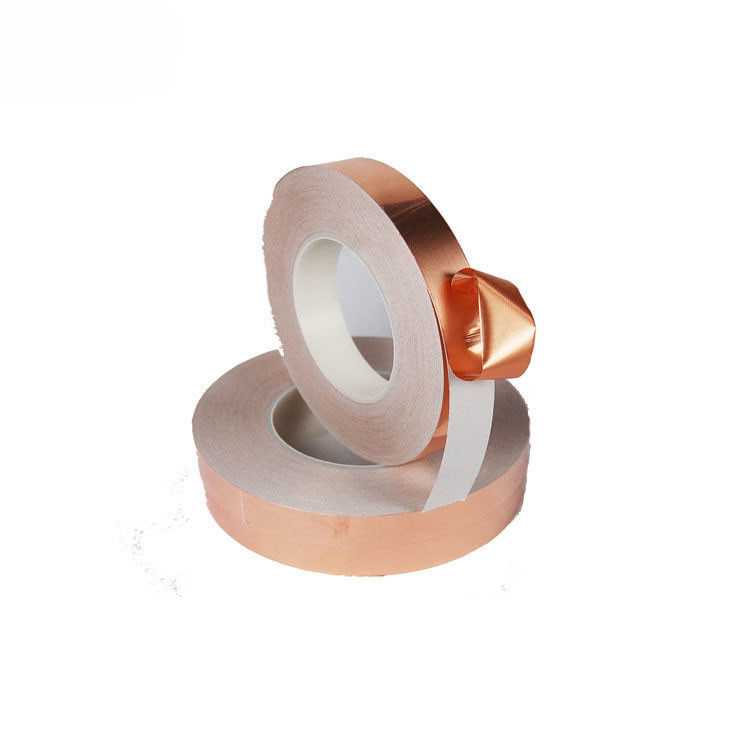

Width 400mm PCB Pure Conductive Adhesive Copper Tape

country of origin
China
Brand Name
OEM
certificate
ISO / SGS / RoHS
MOQ
50kg
unit price
Negotiable
Packing
Exporting Wooden Case
period for dispatch
10 - 15 Days
payment method
L/C, T/T
Supply Capacity
550T Per Month
Product Custom Attributes
Highlight

400mm Conductive Adhesive Copper Tape

,

0.018mm Conductive Adhesive Copper Tape

,

1.2mm Conductive Adhesive Copper Tape

Application:
Electronic
Width:
Max.400mm
Material:
Red Copper
Grade:
Pure Copper
Cu (Min):
99.90%
Alloy Or Not:
Is Alloy
Treatment:
Embossed
Thickness:
0.018mm~1.2mm
Feature:
High Resistance
Remark:
Single-guided/double-guided
Usage:
Insulation
Product Description

Width 400mm PCB Pure Conductive Adhesive Copper Tape





Specifications of copper foil paper :


1) Grade: c11000,C12200
2) Copper: cu min.99.90%
3) Thickness:0.018-1.2mm
4) Width: max.400mm
5) Coil weight:6.5kg/mm
6) Chemical Composition: Cu >99.90% p:0.015%-0.040%
7) Temper: O, 1/4H, 1/2H, H O : HV100
8) Electric 20°CConductivity: C11000 >97% ,C12200 >80%



Grade and Manufacturing information:



Chinese Grade

Abroad Similar Brand

International

USA

JAPAN

UK

GERMANY

(ISO)

(ASTM)

(JIS)

(BS)

(DIN)

T2

Cu-ETP

C11000

C1100

C101

R-Cu57

TP2

Cu-DHP

C12200

C1220

C106

SI-CU



Grade

Chinese State

Specification

Tensile  Strength

Elongation

Vickers Hardness

T2

M

Thickness:0.005-1.2mm
Width: (Max)400mm
Coil Weight:6.5kg/mm

>205

>30

-

Y4

215-275

>25

55-100

TP2

Y2

245-345

>8

75-120



Features:


1) Good viscosity,Cold resistance
2) Mechanical resistance,Moisture resistant
3) High thermal conductivity,Oil & acid resistant
4) Ageing-resistant
5) Flame retardant
6) Easy to tear apart



Applications:


1) Electric and electric springs,switches
2) Lead frames
3) Connectors and oscillation reeds
3) PCB field
4) Communication cable
5) Cable armoring
6) Mobile phone main board
7) Ion battery production lamination with PI film
8) PCB collector (electrode backing) materials



 Width 400mm PCB Pure Conductive Adhesive Copper Tape 0
