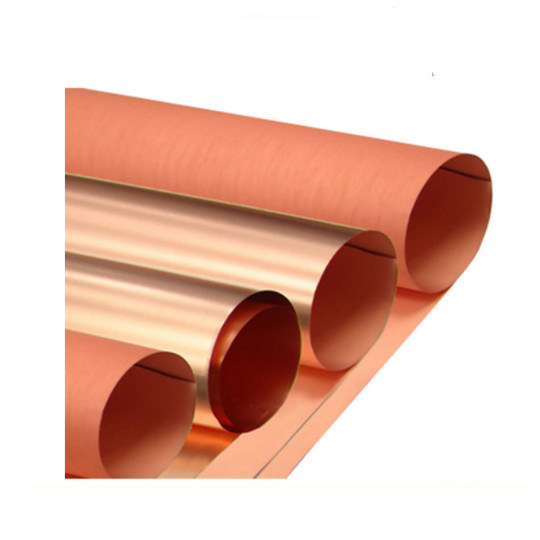

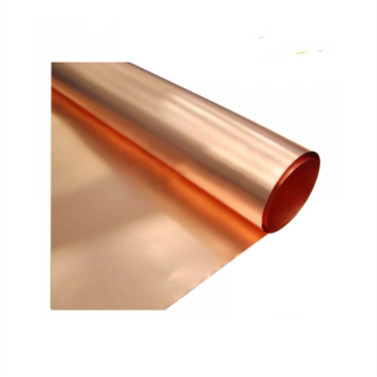

CCL / PCB Insulation Thickness 15um Pure Copper Foil

Place of Origin:China
Brand Name:OEM
Certification:ISO / SGS / RoHS
Minimum Order Quantity:50kg
Price:Negotiable
Payment Terms:L/C, T/T
Supply Ability:550T Per Month
Product Details
Highlight:

15um Electrodeposited Copper Foil

,

CCL Pure Copper Foil

,

15um Pure Copper Foil
Temper: Half Hard
Use: Insulation Material
Type: Roll, Double Conductive Copper Foil Tape
Purity: More Than 99.99%
Sample Packing: 2.5kg/roll
Width: 100~1300mm, 200mm,customized
Cu (Min): 99.99%
Width Size: Sample Is 200mm (can Be Customized )
Product Description
CCL / PCB Insulation Thickness 15um Pure Copper Foil



Description



CCL/PCB electrolytic copper foil are classified as :Standard electrolytic copper foil(STD), High temperture elongation of the copper foil( HTE) ,ultra-low contour copper foil(VLP), flexible copper foil(FCF),inversion of opper foil(RTF).



Feature

  • Improve the consistency of battery usage group and reduce battery cost significantly.
  • Improve the adhesion of active material and the collector, and reduce the electrode manufacturing cost.
  • Reduce the polarization, increase the rate and capacity, improve the battery performance.
  • Protection of fluid collection, extend battery life.
  • Possess Japan Fuji coating machine, slitting machine and automatic computer inspection rewinder machine.
  • Average coating speed reach 90-120m/min.
  • Product 21600m conductive coating aluminum foil every 8 hours,can be used for    200Kpcs 18650 core.
  • Roller coating width up to 1 meters.
  • Can adopt continuous or intermittent coating mode.

Specifications



Inspection item

Parameters

Unit

Original thickness

15

um

Double side coating thickness

3

um

Copper foil width

309.6

mm

Coating width

280

mm

Single side Average surface density

0.42

g/m2

Tensile strength

214.3

Mpa

Extensibility

1.583



Remarks

If there are special requirements, can be customized
