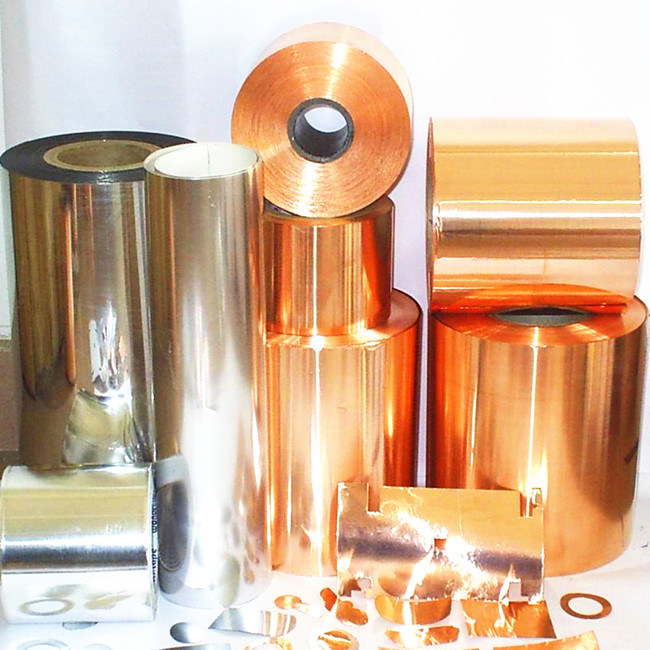

C1100 C1020 C1220 Transformer Strip Thin Copper Foil

Place of Origin:China
Brand Name:OEM
Certification:ISO / SGS / RoHS
Minimum Order Quantity:50kg
Price:Negotiable
Payment Terms:L/C, T/T
Supply Ability:550T Per Month
Product Details
Highlight:

C1100 Thin Copper Foil

,

C1020 Thin Copper Foil

,

C1220 Copper Sheet Roll
Application: Electronic
Width: 10-1250mm
Material: Red Copper
Grade: C1100 / C1020 / C1220
Cu (Min): 99.90%
Alloy Or Not: Non-alloy
Processing Service: Bending
Item: Thin Copper Strip / Copper Foil For Transformer
OEM: Acceptable
Stock: Available
TPI: Acceptalbe
Color: Red
Product Description
C1100 C1020 C1220 Transformer Strip Thin Copper Foil



Product Details



1. Grade:C1100,C1020,C1220

2. Thickness:0.005-1.2mm

3. Width:400mm max

4. Chemincal composition: C1100:Cu≥99.9%;C1020:Cu≥99.96%;C1220:Cu≥99.97% P:0.015-0.04%

5. Oxgen content:C1100:O<500PPM;C1020:O<50PPM

6. Temper:O,1/4H,1/2H,H; O:HV<70; 1/4H:HV 65-85; 1/2H:HV 80-100; H:HV>100

7. Electric 20 degrees centigrade: C1100/C1020>97%;C1220>80%





Applications



1. Electric and electric springs switches

2. Lead frames

3. Connectors and oscillation reeds

4. PCB field

5. Communication cable

6. Cable armoring

7. Mobile phone main board

8. Ion battery production lamination with PI film

9. PCB collector (electrode backing) materials



Description Thin Copper Strip/ Copper Foil for transformer
Other
Standards		 ASTMA276,A484,A479. A580, A582.JIS G4303.JISG4311.
DIN 1654-5.DIN 17440.GBT 1220
Material

Copper (C10200.C11000,C10100.C10200.C12000)C11600.
Brass(C21000.C22000.C23000.C24000.C26000.C27000,C27200.C27400,C2800.C31400.C33000.C35600.C37100.

C36000.C35300.C37100.C37700,C37710.C37000.C68700.C41100.C44300.C46200.C46400.C26130.C65600.)

Bronze(C50500.C51100.C52100.C60800.C61000.C61900.C63010.C62300.C63000.C63280.C63020.C17200.C17000.
C17500.C17510.C18200.C18100.C18200.C16200.C19400.C14500)

Cupronickel(C70400.C71000.C71300.C71500.C70400.C70600.C75200.C77000.C75400.C79000.C79200)
Specifications thickness:0.1-20mm,width:1~2500mm
Price Term EX-Work, FOB, CFR, CIF
Payment Term T/T, L/C, Western Union
Delivery Time According to customer' s quantity
