2oz 3oz 4oz 5oz 6oz Shielding Lithium Ion Battery Copper Foil
Product Details
5oz Lithium Ion Battery Copper Foil
,2oz Lithium Ion Battery Copper Foil
,3oz Lithium Ion Battery Copper Foil
Product Description
2oz 3oz 4oz 5oz 6oz Shielding Lithium Ion Battery Copper Foil
Product Description
We can offer different thickness and width copper foil/ sheet for you. It is ED copper foil, which is the best shielding material for MRI RF room. In usual, 3oz thickness 1320mm width ED shielding copper foil/ sheet is our hot-sale product.
Copper is durable, has superior electrical conductivity and is extremely corrosion resistant. Copper is also easily formed meaning that the shapes of the shield can be easily modified to suit rooms of different shapes and sizes.
Specification
| Copper Foil | Thickness | Width |
| ED Copper Foil | 2oz (0.07mm) | 1290mm |
| 3oz (0.105mm) | 1320mm | |
| 4oz (0.140mm) | ||
| 5oz (0.175mm) | 1370mm | |
| 6oz (0.210mm) | ||
| RA Copper Foil | 0.1mm | 100-600mm |
| 0.15-0.5mm | 100-800mm |
|
Quality Items |
General Technical Terms |
|||||
|
2oz (70um) |
3oz (105um) |
4oz (0.14mm) |
5oz (175um) |
6oz (210um) |
||
|
Area Weight g/m2 |
585±25 |
915±45 |
1220±60 |
1525±75 |
1830±90 |
|
|
Tensile Strength kg/mm2 |
Room Temperature |
≥25.0 |
||||
|
Elongation % |
Room Temperature |
≥5.0 |
||||
|
Leakage Points points/m2 |
No |
|||||
|
Quality of electrical resistivity Ω·g /m2 |
≤0.162 |
|||||
|
Anti-Oxidization Performance 160 centigrade/30min |
No Oxidization |
|||||
|
Width Tolerance mm |
1290.0±1.0 |
1320.0±1.0 |
1370.0±1.0 |
|||
Characteristic
1. High performance, vertically-supported modular enclosure
2. Reinforced wall design
3. Lightweight
4. Installed in more MRI sites worldwide than any other shield system
5. Easily and quickly modified on site
6. Copper serves as an eddy current shield for EMI protection
Application

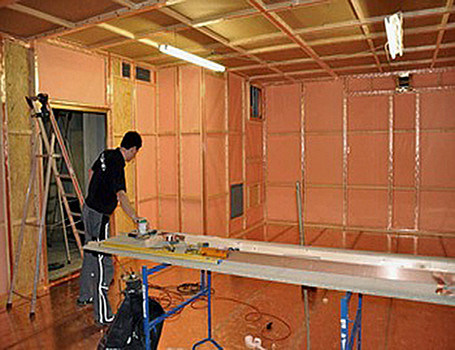

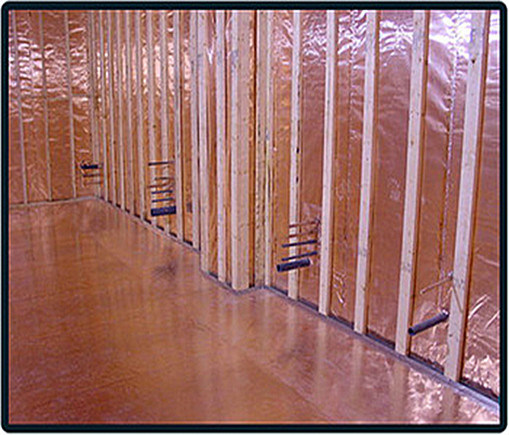

As we can see in the picture, copper foil can be widely used in MRI RF shielding room installation. Such as ceiling, wall and floor. It can effectively prevent the leakage of signals and noise.
