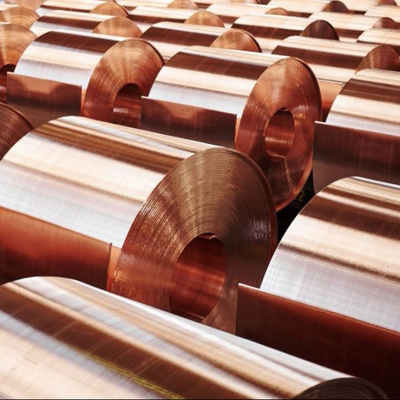

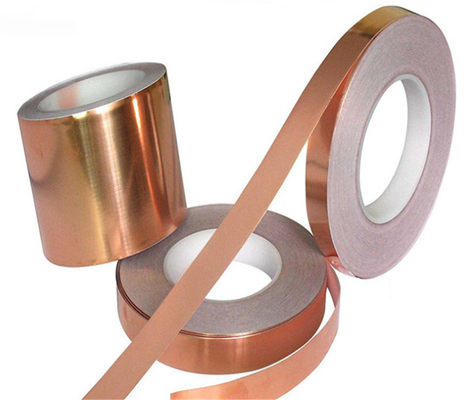

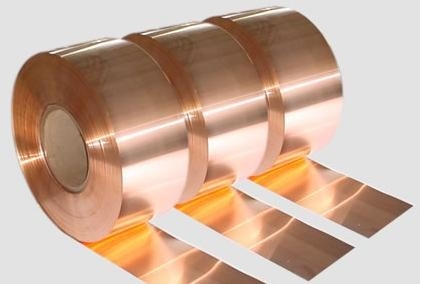

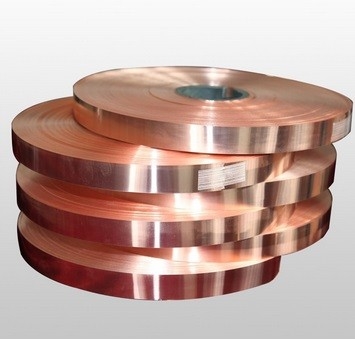

0.5mm Electrolytic Copper Foil
Place of Origin:
China
Brand Name:
OEM
Certification:
ISO / SGS / RoHS
Minimum Order Quantity:
50kg
Price:
Negotiable
Payment Terms:
L/C, T/T
Supply Ability:
550T Per Month
0.5mm Electrolytic Copper Foil
Product Description
| Chemical Composition (%) | |||
| Cu | 99.9 min | O2 | 0.02-0.0045 |
| Physical Properties | |||
| Density g/cm3 | 8.94 | Coefficient of thermal expansion 10-6 /℃ 20/℃-100/℃ | 17.7 |
| Electrical conductivity IACS%(20℃) | 99 | Thermal Conductility W/(m*k) | 390 |
| Modulus of elasticity (KN/mm2) | 118 | ||
| Temper | Tensile strength (RM, Mpa) | Yield Strength (Rp0.2 Mpa) | Elongation A50 | Vickers Hardness (HV) |
| 0 | 195 min | - | 35 min | 60 max |
| 1/4 H | 215-255 | - | 25 min | 60-80 |
| 1/2 H | 255-315 | - | 15 min | 80-100 |
| H | 290 min | - | 5 min | 100-130 |
| EH | - | - | - | - |
Application:
1) Electric and electric springs,switches
2) Lead frames
3) Connectors and oscillation reeds
3) PCB field
4) Communication cable
5) Cable armoring
6) Mobile phone main board
7) Ion battery production lamination with PI film
8) PCB collector (electrode backing) materials
