Width 1320mm MRI RF Room 3oz RA Copper Foil

Brand Name: OEM
Place of Origin: China
Certification: ISO / SGS / RoHS
Minimum Order Quantity: 50kg
Price: Negotiable
Supply Ability: 550T Per Month
Delivery Time: 10 - 15 Days
Inquiry Now
Get A Quote
Specifications
Highlight Features

1320mm RA Copper Foil

,

MRI RF Room RA Copper Foil

,

3oz RA Copper Foil

Application:
RF MRI Installation Project
Width:
1320mm
Material:
Red Copper
Cu (Min):
99.90%
Alloy Or Not:
Non-alloy
Product Name:
Ra Copper Foil For Mri, High Quality Mri Shielding Copper Foil
Color:
Red Coppery
Package:
In Roll And In Wooden Cases
PRICE TERM:
FOB
MOQ:
250KG
Service:
Professional Certificate
Area Weight:
915
Delivery Time:
7-10 Days
Adhesive:
Non
Product Description

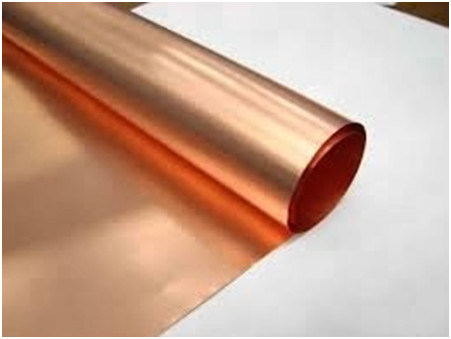

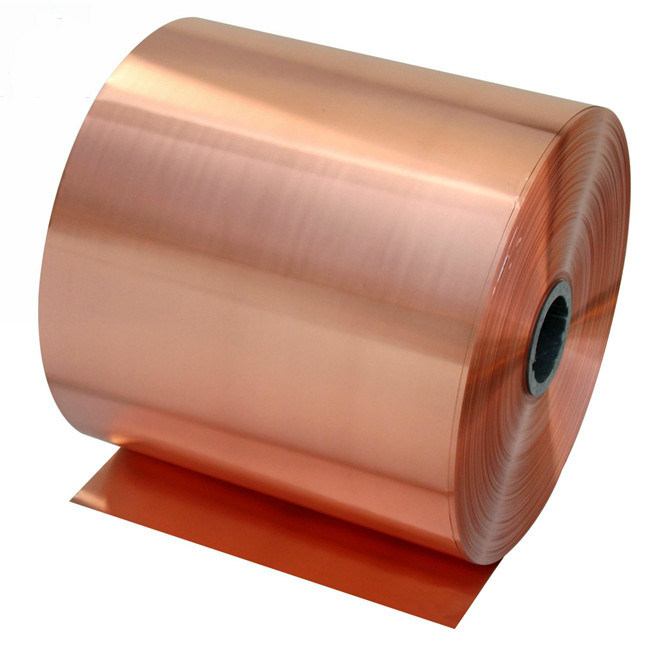

Width 1320mm MRI RF Room 3oz RA Copper Foil


Product Description


We can offer different thickness and width copper foil/ sheet for you. It is RA copper foil, which is the best shielding material for MRI RF room. In usual, 3oz thickness 1320mm width RA shielding copper foil/ sheet is our hot-sale product.
Copper is durable, has superior electrical conductivity and is extremely corrosion resistant. Copper is also easily formed meaning that the shapes of the shield can be easily modified to suit rooms of different shapes and sizes.

Specification


Quality Items

General Technical Terms

2oz
(70um)

3oz
(105um)

4oz
(0.14mm)

5oz
(175um)

6oz
(210um)

Area Weight  g/m2

585±25

915±45

1220±60

1525±75

1830±90

Tensile
Strength
kg/mm2

Room
Temperature

≥25.0

Elongation
%

Room
Temperature

≥5.0

Leakage Points
points/m2

No

Quality of electrical
resistivity
Ω·g /m2

≤0.162

Anti-Oxidization
Performance
160 centigrade/30min

No Oxidization

Width Tolerance
mm

1290.0±1.0

1320.0±1.0

1370.0±1.0



Characteristic
  1. High performance, vertically-supported modular enclosure
  2. Reinforced wall design
  3. Lightweight
  4. Installed in more MRI sites worldwide than any other shield system
  5. Easily and quickly modified on site
  6. Copper serves as an eddy current shield for EMI protection

Producing Process
Width 1320mm MRI RF Room 3oz RA Copper Foil 0


Application in the shielding fields
Width 1320mm MRI RF Room 3oz RA Copper Foil 1
As we can see in the above picture, copper foil can be widely used in MRI RF shielding room installation. Such as ceiling, wall and floor. It can effectively prevent the leakage of signals and noise.
