T2 Conductive High Temperature Copper Foil Sheet Roll

Place of Origin:China
Brand Name:OEM
Certification:ISO / SGS / RoHS
Minimum Order Quantity:50kg
Price:Negotiable
Payment Terms:L/C, T/T
Supply Ability:550T Per Month
Product Details
Highlight:

3oz Copper Foil Sheet Roll

,

2oz Copper Foil Sheet Roll

,

3oz RA Copper Foil
Product Name: High Precision RA Copper Foil
Application: Two Layer FCCL
Width Range: Up To 600mm
Shape: Coil
Material: America Copper Ingot
Normal Weight: About 50kg Per Roll
Test Standard: IPC-4562
Fatigue Resistance: 65%
Electrical Conductivity: ≥98.3%
Maximum Resistivity: 0.0181Ωmm2/m
Product Description

T2 Conductive High Temperature Copper Foil Sheet Roll





Product Profile  :



We developed out there treated copper foil that has very low profile, this kind of copper foil is best for high frequency application.The surface treated copper foil, like 18um, 35um, 50um usually used in Multi-layer and double face FPCB construction, We also produce heavy ED copper foil, mainly for high current FPCB construction.



Mechanical Properties Sheet:



Quality Items

General Technical Terms

1/3oz

1/2oz

1oz

2oz

3oz

Surface Roughness

(µm)

Matte Surface Rz

≤6

≤7

≤10

≤12

≤5.1

Peel Strength (kg/cm)

≥1.1

≥1.2

≥1.8

≥2.2

≥1.0

Leakage Points (points/m2)

≤5

No

High Temperature Anti-Oxidization Performance(180℃/h)

No Oxidization

Width Tolerance

(mm)

Roll

(+2.0,0)

Piece

(+2.0,-2.0)

Test Standard

IPC-4562



Features:



The material has higher extensibility, and has a high bending resistance and no crack.



Performances:

  • High flexibility and extensibility
  • Even and smooth surface
  • Good fatigue resistance
  • Strong antioxidant properties
  • Good mechanical properties



FPC T2 high flex rolled copper foil properties (IPC-6542)

Item

Unit

Parameters

12μm

18μm

25μm

35μm

70μm

Mass per unit(±5%)

g/m²

105

160

300

400

445

Cu+Ag

%

≥99.99

Temper



H

O,H

O,H

O,H

O,H

Surface roughness

Ra

μm

  0.13

0.12

0.1

0.08

 0.08

Rz

μm

1.3

1.0

0.8

0.74

0.76

Tensile strength

Normal Temp /23℃

N/mm²

≥430

≥450

≥450

≥450

≥450

High Temp /220℃

N/mm²

≥140

≥150

≥170

≥210

≥220

Elongation

Normal Temp /23℃

%

≥1.5

≥3.0

≥4.0

≥4.2

≥4.5

High Temp /220℃

%

≥8

≥10

≥18

≥28

≥30

Fatigue Resistance (annealed)

%

65

65

65

65

65

Maximum resistivity

Ωmm2/m

0.0181

Electrical conductivity

%

≥98.3%

Film and adhesive layers

Instant Temp.

300℃/10s

Film and adhesive paste after transient

 temperature without blistering delamination.

Anti oxidation

H.T.(200℃)

Minute

Won’t Change the Color within 60 minutes

Pinhole test results

piece/ m²

Pinhole area more than 0.5 mm²,0.005 piece/ m²

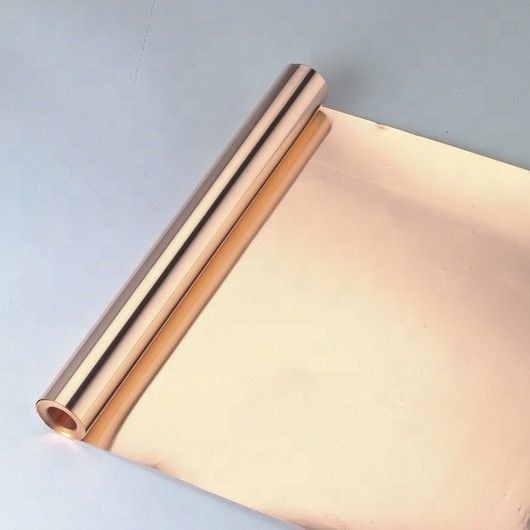

T2 Conductive High Temperature Copper Foil Sheet Roll 0
