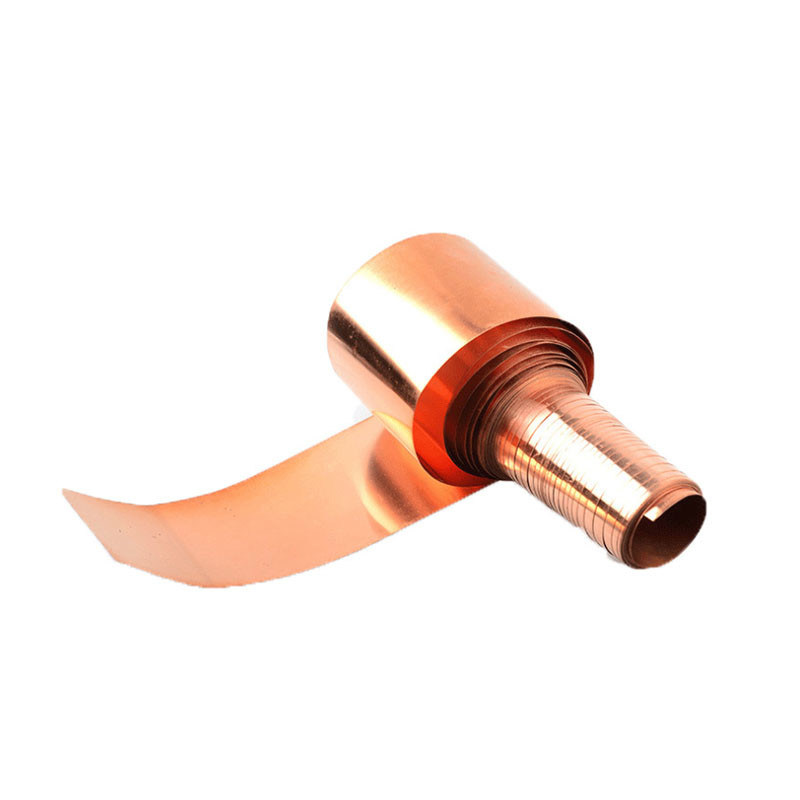

C11000 Insulation Transformer PCB Copper Foil

Place of Origin:China
Brand Name:OEM
Certification:ISO / SGS / RoHS
Minimum Order Quantity:50kg
Price:Negotiable
Payment Terms:L/C, T/T
Supply Ability:550T Per Month
Product Details
Highlight:

Transformer PCB Copper Foil

,

C11000 PCB Copper Foil

,

650mm PCB Copper Foil
Product Name: Double Shiny HP RA Cu Foil For PCB Thickness Range From 0.006mm ~ 0.10mm
Alloy Number: C11000
Material: Red Copper
Shape: Roll
Density: 8.9g/cm3
Width(Max): 650mm
Thickness: 0.006mm~0.10mm
Min Trial Order: 100kg For Normal Thickness
Applications: Transformer
Grade: Pure Copper
Product Description

C11000 Insulation Transformer PCB Copper Foil





Features of Copper Foil

1) Thickness: from 0.006mm  to 0.1.mm
2) Maximum Width:650mm
3) Min trial order: 100kg  for normal thickness


Applications for Copper Foil



1) Transformer
2) Water Heater exchanger unit
3) Automotive manufacturers



Production capacity for Copper Foil


550 tons output per month
100kg trial order is available



Name

GB

ALLOY NO.

SIZE (mm)

(ISO)

(ASMT)

(JIS)

(BIS)

(DIN)

Copper Foil

T2

Cu-ETP

C11000

C1100

C101

R-Cu57

Thickness: 0.006-0.1 /Max Width: 650



Mechanical Properties



Temper

JIS Temper

Tensile Strength Rm/N/mm 2

Elongation A50/%

Hardness HV

M

O

310~410

≥ 30

40~60

Y2

1/2H

320~450

≥ 20

55~85

Y

H

440~480

-

80~150

T

EH

450~540

-

-

Note: We can provide products with other properties according to customers` requirements.



Sizes and Tolerances (mm)



Thickness

Thickness Tolerances

Width

Width Tolerances

0.006~0.04

± 0.001

1.0~650

± 0.1

> 0.04~0.10

± 0.002



Specifications Available (mm)

Thickness

Width

Temper

0.006~0.04

1.0～650

O,1/2H,H,EH

> 0.04~0.10

1.0～650

O,1/2H,H,EH



C11000 Insulation Transformer PCB Copper Foil 0



Why Choose us Civen as your supplier?



1. Very competitive price
2. Small order acceptable
3. Good quality
4. On time delivery and perfect service
5. Customers' design are welcome!
