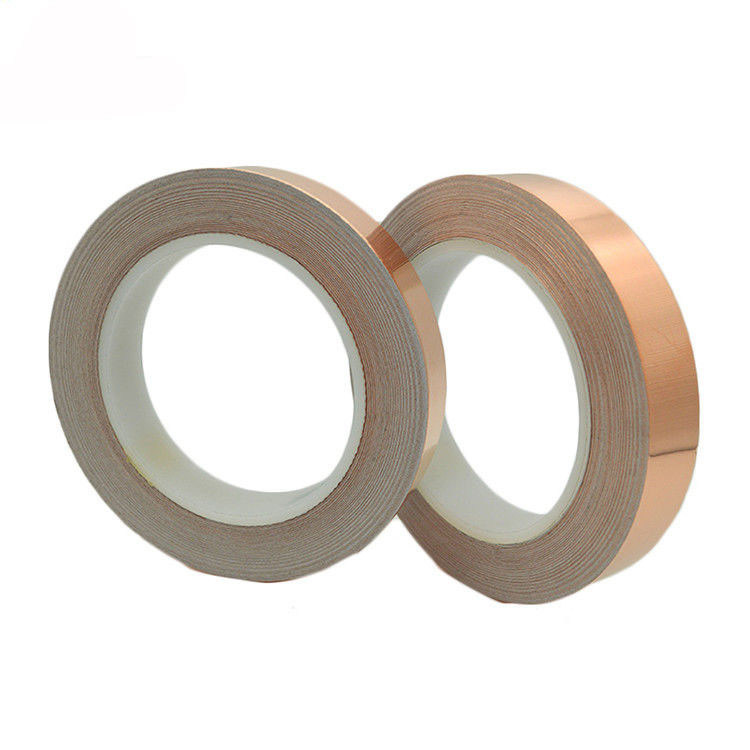

Heat Resistant Thickness 0.035mm Thermal Copper Foil Tape
0.035mm Copper Foil Tape
,0.009mm Copper Foil Tape
,0.035mm Self Adhesive Copper Tape
~ copper foil tapes uses copper foil as substrate and single sided coated with conductive acrylic adhesive. thermal conductivity copper foil tape
~ It can be divided into: self-adhesive copper foil, double side conductive copper foil tape ,single conductive copper foil tape.It has high temperature resistance ,strong adhesion ,good conductivity ,excellent shielding performance and easy die-cutting .
Main Features :
1) Waterproof, cold resistance.
2) Strong adhesion and easily peeled off. thermal conductivity copper foil tape
3) EMI shielding, prevent body harm from electromagnetic wave.
4) Non-oxidation, antistatic, UV resistance, thermal insulation and strong adhesion Moisture resistance, chemical and corrosion resistance.
5) Removable liner on adhesive side makes it easy to handle, protect the adhesive prior to application and die cut complex shape.
Technical Parameter :
|
Product Code |
P0702 |
P0703 |
P0705 |
P0706 |
P0707 |
P0710 |
P0712 |
|
Name |
Copper Foil Tape |
Copper Foil Tape |
Copper Foil Tape |
Copper Foil Tape |
Copper Foil Tape |
Copper Foil Tape |
Tin-Plating copper foil tape |
|
Backing |
Copper Foil /Nano Carbon copper foil |
Copper Foil /Nano Carbon copper foil |
Copper Foil /Nano Carbon copper foil |
Copper Foil /Nano Carbon copper foil |
Copper Foil /Nano Carbon copper foil |
Copper Foil /Nano Carbon copper foil |
Copper foil |
|
Total Thickness (mm) |
0.02 |
0.03 |
0.05 |
0.06 |
0.07 |
0.1 |
0.12 |
|
Copper foil Thickness(mm) |
0.009 |
0.009 |
0.018 |
0.025 |
0.035 |
0.05 |
0.045 |
|
Peel Adhesion |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
0.8 |
|
Resistance(Omega) |
0.05 |
0.05 |
0.05 |
0.05 |
0.05 |
0.05 |
0.03 |
|
Holding power |
48 |
48 |
48 |
48 |
48 |
48 |
48 |
|
Short-term temperature |
120 |
120 |
120 |
120 |
120 |
120 |
180 |
|
Long-term temperature |
80 |
80 |
80 |
80 |
80 |
80 |
120 |
thermal conductivity copper foil tape widely used as follows:
1) Antistatic floor (ESD floor).
2) Shielding in housings and Faraday cages.
3) Cable shielding (Wrap around the cable).
4) Suitable for precision electronic products.
5) Electrical connection between surfaces (sheets / foils).
6) Mounting transparent foils, windows for EMI/RFI shielding.
7) Temporary shielding during emission and immunity tests.
8) The back of guitar pickguards,Eliminates electrical hurm and noise.
9) Replace tracks on electrical & printed circuit boards (can solder).
