| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | ISO / SGS / RoHS |
| Minimum Order Quantity: | 50kg |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Exporting Wooden Case |
| Delivery Time: | 10 - 15 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 550T Per Month |
| Alloy Number: | C11000 | Material: | Red Copper |
|---|---|---|---|
| Shape: | Roll Size | Thickness: | 1/4OZ~20OZ(9μm~70μm) |
| Width: | 550mm~1295mm | Density: | 8.9g/cm3 |
| Application: | CCL,PCB | HS Code: | 7410110000 |
| Grade: | Pure Copper | Alloy Or Not: | Non-alloy |
| High Light: | 18 micron PCB Copper Foil,9 Micron Red PCB Copper Foil,35 micron PCB Copper Foil |
||

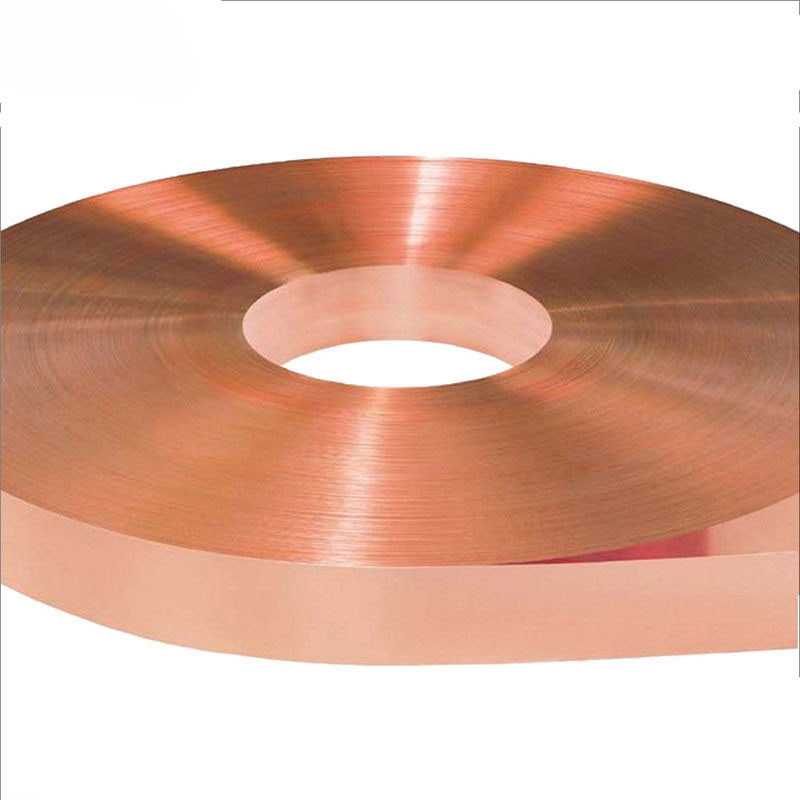

CCL Thickness 9 Micron Red PCB Copper Foil
Description:
CCL/PCB electrolytic copper foil are classified as :Standard electrolytic copper foil(STD),High-temperture elongation of the copper foil( HTE) ,ultra-low contour copper foil(VLP), flexible copper foil(FCF),inversion of opper foil(RTF).Ordinary thickness of the ED copper foils are 9 microns and 12 microns ,18 microns,35 microns etc. The maximum width of the ED copper foil iw 1370mm(53.93inch),.Also we can do special process according to customer requirements .
Feature
. High temperature anti-oxidization performance.
. High temperature elongation performance.
. Environment friendly production.
Specification:
|
Classification |
Unit |
1/4OZ (9μm) |
1/3OZ (12μm) |
J OZ (15μm) |
1/2OZ (18μm) |
1OZ (35μm) |
2OZ (70μm) |
|
|
Cu Content |
% |
≥99.8 |
||||||
|
Area Weigth |
g/m2 |
80±3 |
107±3 |
127±4 |
153±5 |
283±5 |
585±10 |
|
|
Tensile Strength |
R.T.(25℃) |
Kg/mm2 |
≥28 |
≥30 |
||||
|
H.T.(180℃) |
≥15 |
|||||||
|
Elongation |
R.T.(25℃) |
% |
≥4.0 |
≥5.0 |
≥6.0 |
≥10 |
||
|
H.T.(180℃) |
≥4.0 |
≥5.0 |
≥6.0 |
|||||
|
Roughness |
Shiny(Ra) |
μm |
≤0.4 |
|||||
|
Matte(Rz) |
≤5.0 |
≤6.0 |
≤7.0 |
≤7.0 |
≤9.0 |
≤14 |
||
|
Peel Strength |
R.T.(23℃) |
Kg/cm |
≥1.0 |
≥1.2 |
≥1.2 |
≥1.3 |
≥1.8 |
≥2.0 |
|
Degraded rate of HCΦ(18%-1hr/25℃) |
% |
≤5.0 |
||||||
|
Change of color(E-1.0hr/190℃) |
% |
Good |
||||||
|
Solder Floating 290℃ |
Sec. |
≥20 |
||||||
|
Pinhole |
EA |
Zero |
||||||
|
Preperg |
---- |
FR-4 |
||||||
