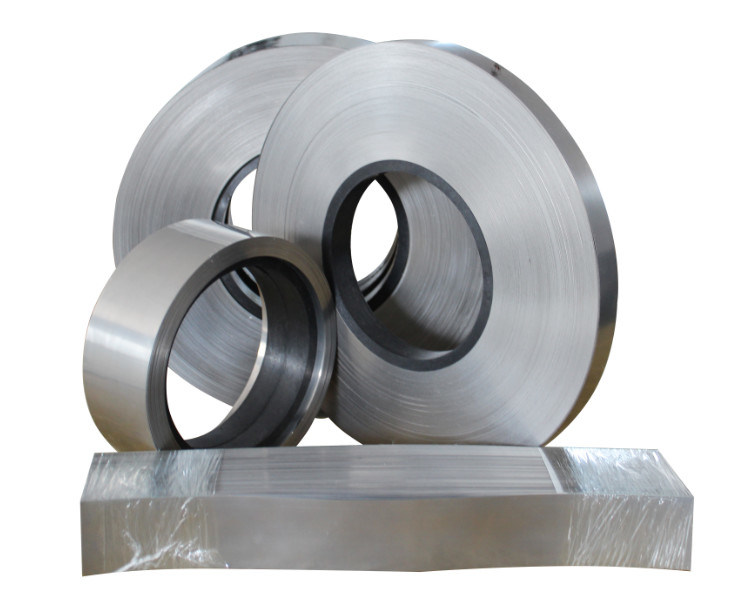

Single Side Rolled Thickness 0.035mm Nickel Plated Copper Foil
1. Description
Nickel has strong passivation ability because its high stability in the air. It can form a very thin passivation film in the air which can resist atmospheric alkali and some acid corrosion. It makes nickel plated product with good chemical stability during working or under alkaline environment. Nickel plated product is not easy to change color and can be oxidized when the temperature is above 600℃.It could be used in many areas. We can produce big width Nickel plated copper foil.
Due to the high surface hardness of nickel plating product, electroplating nickel crystal is extremely small and has highly polished which can polish to mirror surface appearance. And it can keep clean for a long time in the atmosphere. So it often is used to decorate.
2. Base Material:
High-precision Rolled Copper Foil (JIS:C1100/ASTM:C11000) Cu content more than 99.96%
3. Base Material Thickness :
0.035mm
4. Base Material Width :
more than 150mm
5. Base Material Temper:
According to customer requirements
6. Application:
Electrical appliances, electronics, batteries, communications, hardware and other industries;
7. Performance Parameters:
| Items |
Nickel Plating |
Non-weldable NickelPlating |
| Width Range |
≤600mm (≤23.62inches) |
| Thickness Range |
0.012~0.15mm (0.00047inches~0.0059inches) |
| Nickel Layer Thickness |
≥0.4µm |
≥0.2µm |
| Nickel Content of Nickel Layer |
80~90% (Can adjust tin content according to customer welding process) |
100% Pure Nickel |
| Surface Resistance of Nickel Layer (Ω) |
≤0.1 |
0.05~0.07 |
| Adhesion |
5B |
| Tensile Strength |
Base Material Performance Attenuation after Plating ≤10% |
| Elongation |
Base Material Performance Attenuation after Plating ≤6% |
