Double Sided Thickness 0.01mm Tin Plated Copper Foil
Place of Origin:
China
Brand Name:
OEM
Certification:
ISO / SGS / RoHS
Minimum Order Quantity:
50kg
Price:
Negotiable
| Structure: | Sn | Cu | Sn | Temper: | Customized（Soft/Quarter Hard/Half Hard/Hard） |
|---|---|---|---|
| Thickness: | 0.01/0.05/0.1mm | Shape: | Roll |
| Craft: | Tinned | Width: | 3-300mm |
| Width Tolerance: | EN1652 | Thickness Tomerance: | ±10% |
| Highlight |
0.01mm Tin Plated Copper Foil,0.15mm Tin Plated Copper Foil,300mm Tin Plated Copper Foil |
||
Product Description

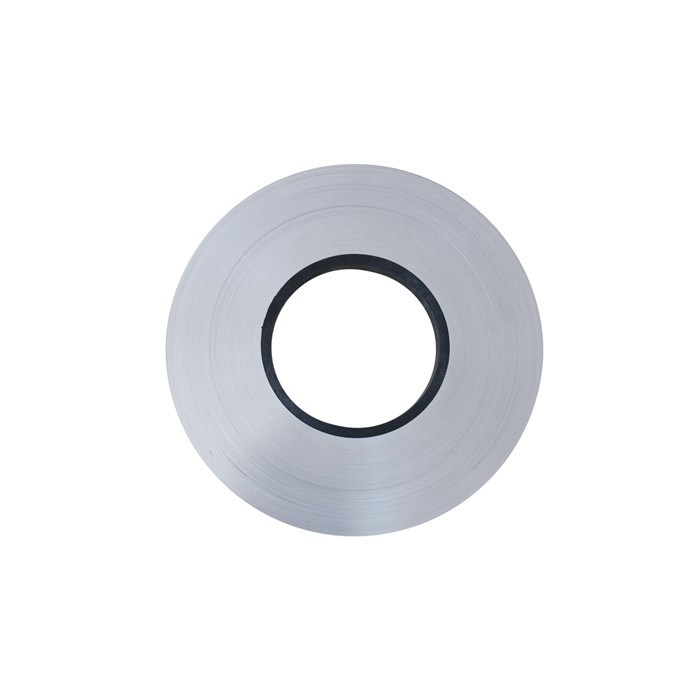

Double Sided Thickness 0.01mm Tin Plated Copper Foil
1. Description
Tin-cladded copper foil mainly solved surface un-smoothly and thickness un-even when ordinary copper foil is tinned. It has high peel strength on the laminated surface due to some special treatment. Also the whole process were done in room temperature and would not change metal structure.
2. Capacity:
- Thickness of tin according to customers’ requirement; Single side laminating also ok.
- Laminating layer tolerance uniform m; Material thickness uniformity is good
- Material Surface is smooth and even；
- Good solderability can be guaranteed for our standard quality, even after longer periods of storage.
- Strips＞0.05mm thickness can also be supplied in the grades halfhard and hard upon request.
3.Specification
| Item | Unit | Size | ||||
| Thickness | mm | >0.01 | 0.02 | >0.05 | >0.1 | >0.15 |
| Width | mm | 3-300 | 1-320 | 1-320 | 1-190 | 4-190 |
| Thickness tomerance | ±10% | ±10% | ±10% | ±10% | EN1652 | |
| Width tolerance | EN1652 | |||||
| Strip lengths³⁾[kg/mm] | Dependent on thickness and width | |||||
