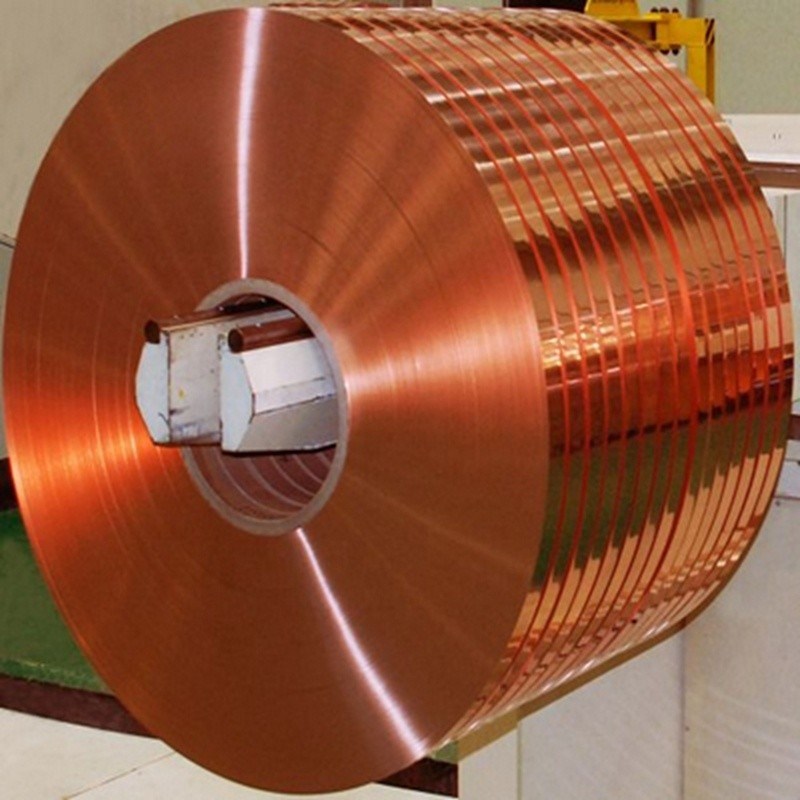

10 Micron Pure Electrolytic Thin Copper Foil
10 Micron Thin Copper Foil
,800mm Thin Copper Foil
,0.04mm Copper Sheet Roll
10 Micron Pure Electrolytic Thin Copper Foil
Product Details
1. pure electrolytic copper foil
2. Thickness:0.006-0.04mm
3. Width:10-1285mm
4. Process: electrolysis
5. Surface: single-polished;double-polished;nickel coated;galvanized;
| Thickness | weight in standard |
| 0.006mm | 53-56 G/M3 |
| 0.007mm | 62-67 G/M3 |
| 0.008mm | 71-76 G/M3 |
| 0.009mm | 85-90 G/M3 |
| 0.012mm | 104-110 G/M3 |
| 0.015mm | 126-132 G/M3 |
| 0.018mm | 148-158 G/M3 |
| 0.022mm | 180-190 G/M3 |
Electrolytic copper foil is an important material for the manufacture of copper clad laminates (CCL) and printed circuit boards (PCBs) and lithium ion batteries. In the rapid development of today's electronic information industry, electrolytic copper foil is called the "neural network" of electronic product signal and power transmission and communication. Since 2002, the production value of China's printed circuit boards has entered the third place in the world. As the substrate material for PCBs, CCL has also become the third largest producer in the world.

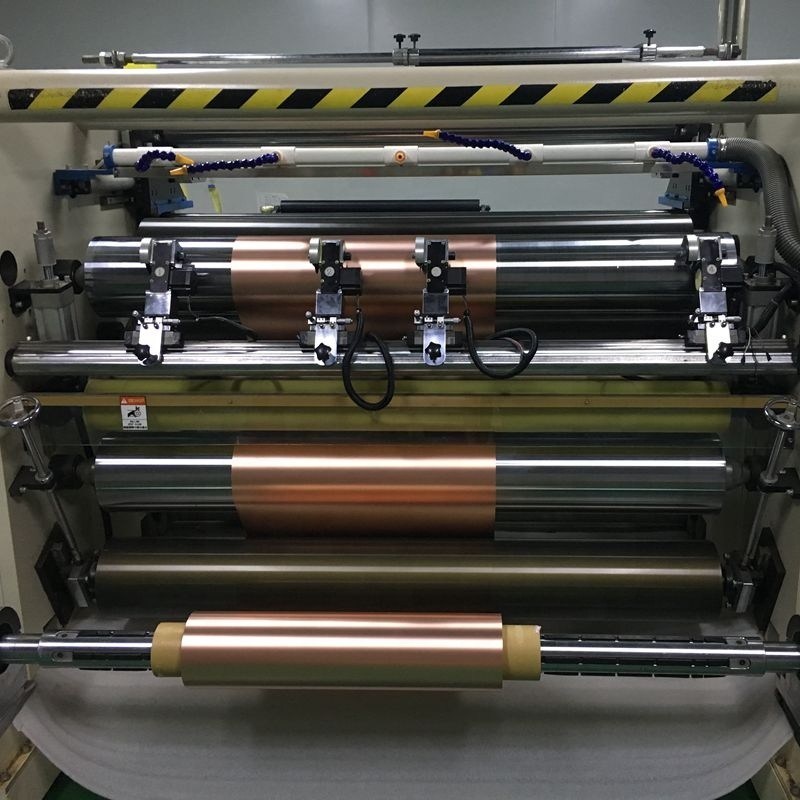

Electrolytic copper foil production process is simple, the main process has three: solution foil, surface treatment and product slitting. Its production process seems simple, but it is a combination of electronics, machinery and electrochemistry, and it is a production process that requires particularly strict production environment.
Used in CCL, PCB epoxy, polyimide and other common or environmentally friendly substrates.
It should not be stored for a long time under high temperature (above 30 degrees) high humidity (70% or more) conditions.
For electrolytic copper foil we have
1. 5-Micron double polished electrolytic copper foil for lithium battery.
2. Double polished electrolytic copper foil for lithium battery
3. Single polished electrolytic copper foil for lithium battery
4. Double-sided wool electrolytic copper foil.
5. Copper foil for PCB
6. Three-dimensional porous copper foil.
7. 3-D porous aluminium foil
8. Nickel coated 3-D porous copper foil
