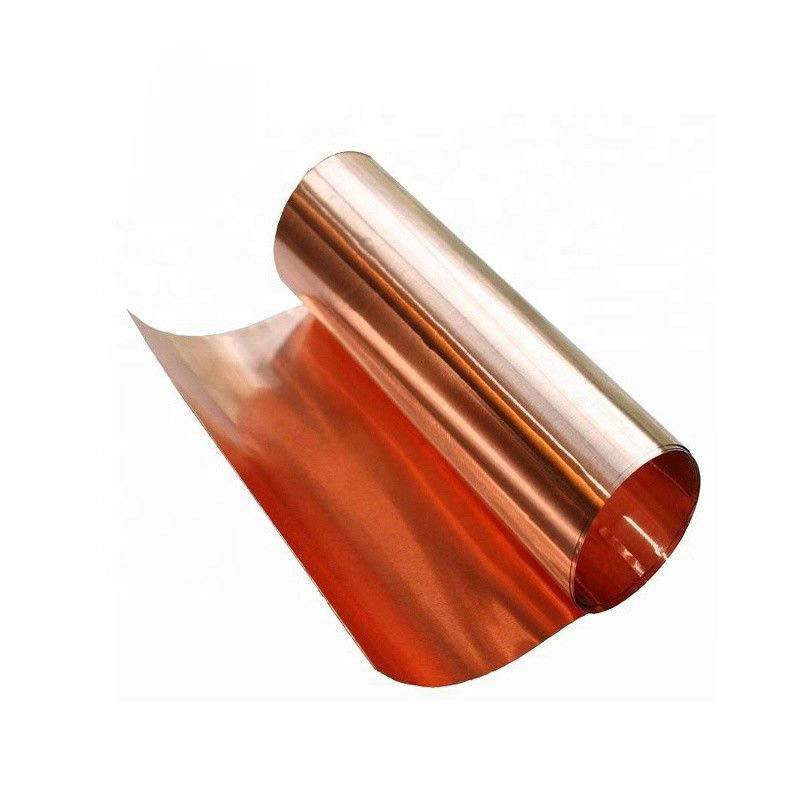

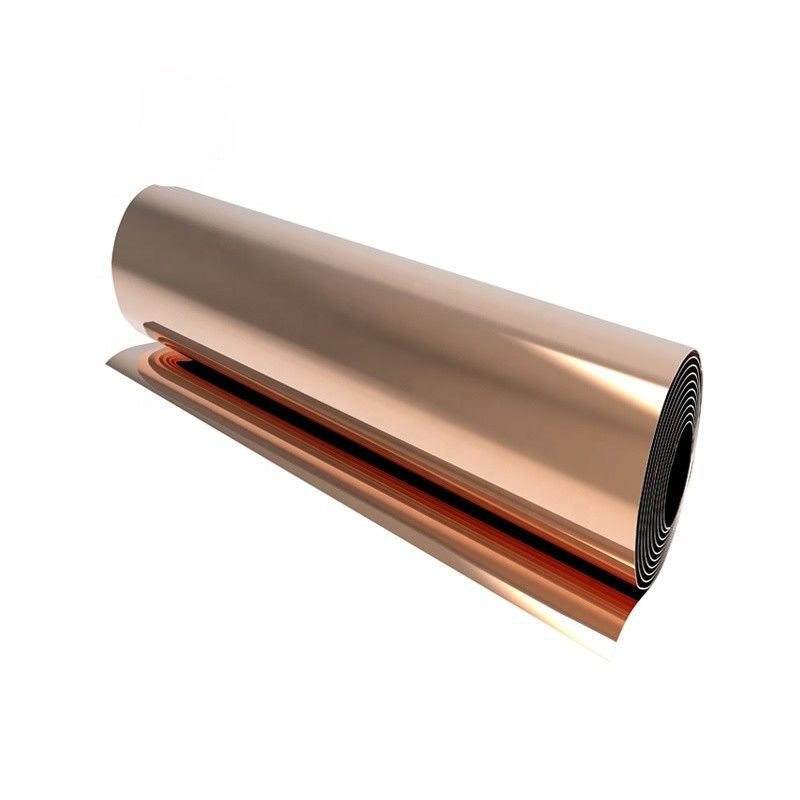

PCB Customized Pure Copper Foil Rolls

Place of Origin:China
Brand Name:OEM
Certification:ISO / SGS / RoHS
Minimum Order Quantity:50kg
Price:Negotiable
Payment Terms:L/C,T/T
Supply Ability:550T Per Month
Product Details
Highlight:

0.01mm Copper Foil Rolls

,

PCB Copper Foil Rolls

,

1220mm Rolled Copper Foil
Application: Electronic,Industry,Decoration
Width: 3mm-1220mm
Material: Red Copper
Grade: Pure Copper
Cu (Min): ASTM
Alloy Or Not: Is Alloy
Product Name: 0.01mm To 0.1mm C1100 Pure Copper Strip Rolled Foil For PCB
Shape: Plate / Sheet / Coil
Surface: Bright,Mill,Mirror,Brush,Hair Line.etc.
Hardness: O, 1/4H, 1/2H, 3/4H, H, EH, SH
Standard: JIS ASTM DIN EN ISO
Certificate: RoHS SGS ISO 9001 TUV BV
Dimensions: Customized
Product Description
PCB Customized Pure Copper Foil Rolls


DETAIL SHOW

New Material High Quality
Using the best brass of china ,ensure quality.
Refused to use old material pretended new


Precise,Smooth,Tidy
Our copper materials size precision
Smooth surface,saw tidy and flat


Professional Customized
Manufacture customize width ,thickness,length
To ensure our materials is that you need





Chemical Composition




Alloy Chemical Composition
QB JIS /ASTM Cu P O Other
T2 JIS C1100 99.9 0.015-0.040 - balance
TU ASTM C10300 99.95 0.001-0.005 - balance
TP1

JIS  C1220

ASTM C12200

 99.9 0.004-0.012 - balance



Mechanical Property





Grade(China) Grade(Japan) Temper Vickers Hardness (HV) Tensile strength(Mpa) Elongation(%)
T2/T3/TP1/TP2

C11000/C1201

C1220.etc.

 M - ≥290 ≥40
Y4 75-125 325~410 ≥35
Y2 85-145 340~460 ≥25
Y 105-175 390~530 ≥13
T - ≥490 -





Surface







Surface Finish Definition Application
2B Those finished, after cold rolling, by heat treatment, picking or other equivalent treatment and lastly by cold rolling to given appropriate luster. Medical equipment, Food industry,Construction material, Kitchen utensils.
BA

Those processed with bright heat treament after cold rolling.

 Kitchen utensils, Electric equipment, Building construction.
NO.3 Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. Kitchen utensils, Building construction.
NO.4 Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. Kitchen utensils, Building construction, Medical equipment.
HL Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. Building construction.
NO.1 The surface finished by heat treament and picking or processes corresponding there to after hot rolling. Chemical tank, pipe.


PCB Customized Pure Copper Foil Rolls 0
