Double Sided Tin Plated 0.04mm Conductive Adhesive Copper Tape

Brand Name: OEM
Place of Origin: China
Certification: ISO / SGS / RoHS
Minimum Order Quantity: 50kg
Price: Negotiable
Supply Ability: 550T Per Month
Delivery Time: 10 - 15 Days
Inquiry Now
Get A Quote
Specifications
Highlight Features

3.5mil Conductive Adhesive Copper Tape

,

1.4mil Conductive Adhesive copper Tape

,

0.04mm Conductive Adhesive Copper Tape

Adhesive:
Acrylic
Adhesive Side:
Double Sided
Adhesive Type:
Hot Melt, Pressure Sensitive, Single-Sided Conductive Acrylic PSA
Design Printing:
No Printing
Feature:
Heat-Resistant
Use:
MASKING
Backing Thickness:
1.4mil (0.04mm)
Total Thickness:
3.5mil (.088mm)
Breaking Strength:
25 Lb./in (44 N/10mm)
Adhesion To Steel:
35 Oz/in (3,8 N/ 10mm)
Product Description
EMI Shielding Tin Plated Conductive Adhesive Copper Tape

Product Description

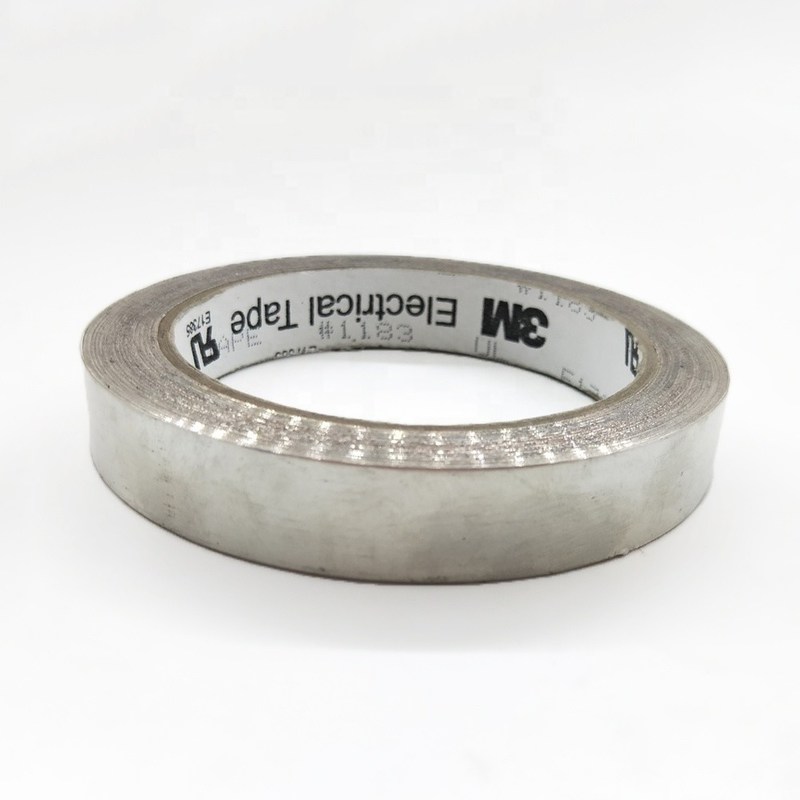

Tin-Plated Copper Foil Tape 1183 consists of a 1-ounce dead soft tin-plated copper foil backing and an electrically conductive, pressure-sensitive acrylic adhesive. This tape is supplied on a removable liner for easy handling and die-cutting. It has excellent solderability .



 Features:

  • Dead soft 1-ounce (1.4-mil) copper foil backing for good shielding effectiveness, soldering and converting (slitting and die cutting).
  • Tin-plating facilitates soldering to the backing and resists oxidation and corrosion.
  • UL recognized flame-retardancy per UL 510 for applications needing this property.
  • Conductive particles in the adhesive provides low contact resistance between the substrate and the backing to drain static charge.
  • Acrylic pressure-sensitive adhesive has good resistance to heat, oxidation, solvents and oils.
  • Removable liner makes it easy to handle and die cut complex shapes.
  • There are both standard and custom roll widths and lengths to meet a variety of application needs.
Typical Physical Properties:

Properties Typical Values
Backing thickness 1.4 mil (0.04mm)
Total thickness (backing plus adhesive on both sides) 3.5 mil (.088mm)
Breaking strength 25 lb./in (44 N/10mm)
Adhesion to steel 35 oz/in (3,8 N/ 10mm)
Electrical resistance through adhesive 0.010 ohm
Flame retardancy Pass

Applications:

Tin-Plated Copper Foil Tape 1183 is typically used for applications requiring excellent electrical conductivity from the application substrate through the adhesive to the foil backing. Common uses include grounding and EMI shielding in equipment, components, shielded rooms, etc. The tin plating facilitates soldering to the backing and resists oxidation and corrosion.


Our Factory Competitive Advantages:


• Well Competitive Prices and High Quality Control
• Prompt Delivery
• Earth-friendly Products
• In a Variety of Design
• Small Order Acceptable
• OEM Accepted
